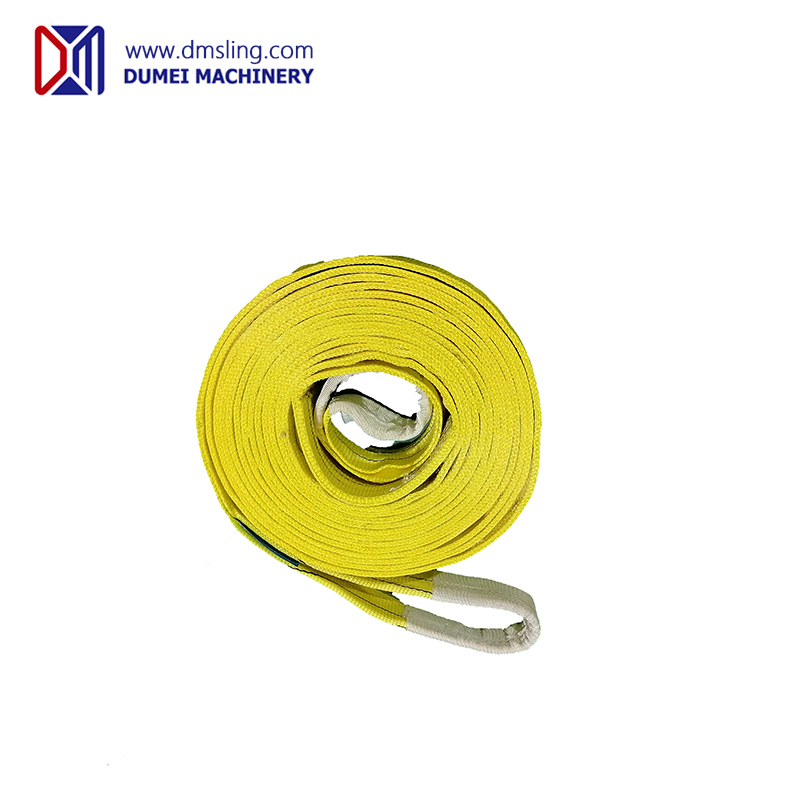

3000KG Lifting Webbing Sling
Product Overview:
3000KG lifting webbing sling, is a type of crane lifting sling, which is commonly called as web slings for lifting. The 3-ton eye-eye flat web sling produced by DMSLING is made from industrial strength yarn and woven on industrial looms. Compared to traditional steel wire ropes and chain slings, it offers the following advantages:
1.Protects the lifted objects, preventing surface damage.
2.High strength, lightweight, and easy to carry.
3.Soft and easy to operate.
4.Non-conductive and non-corrosive.
3000KG Lifting Webbing Sling Details
Product Description:
Model: DMFS7EE-3T
Type: Folded Eyes
Material: 100% High tenacity polyester
Construction: Woven into a flat webbing and double layers with reinforced eyes at both end
Safety Factor: 7:1
Working Load Limit: 3 Ton (3000KG)
Breaking Strength: 21 Ton
Width: 90mm
Approx Thickness: 7.5mm
Length: 1-50M
Eye Length: 350mm
Colour: Yellow
Working Temperature: -40°C~100°C
Manufacturing Standard: EN1492-1/A1
Certification: CE & GS issued by TÜV
The 3000KG eye-eye lifting webbing sling features an eye or loop on each side, which is reinforced with a wear-resistant protective cover. The central part of the sling is made by sewing multiple layers (at least two) of woven webbings together. In contrast, the endless flat sling consists of one single large circular loop. The 3-ton lifting webbing sling can be used as a crane lifting sling for hoisting as well.
Flat lifting webbing slings are made by weaving industrial polyester high-strength yarns into a webbing on a braiding machine, followed by high-temperature dyeing and setting, and then processed into double-layered lifting slings using an industrial sewing machine.
DMSLING is a specialized manufacturer engaged in the research, development, and production of lifting slings and rigging equipment. DMSLING's flat eye lifting slings come with distinct identification colors for each model. The lifting capacity is indicated by corresponding black stripes according to the tonnage. Produced in accordance with the European industry standard EN1492, these web slings for lifting have a safety factor of 7:1. For products manufactured according to the Chinese national standard GB/T8521-1997, the safety factor is 6:1. Some products supplied to the military logistics even have a safety factor of 8:1.
