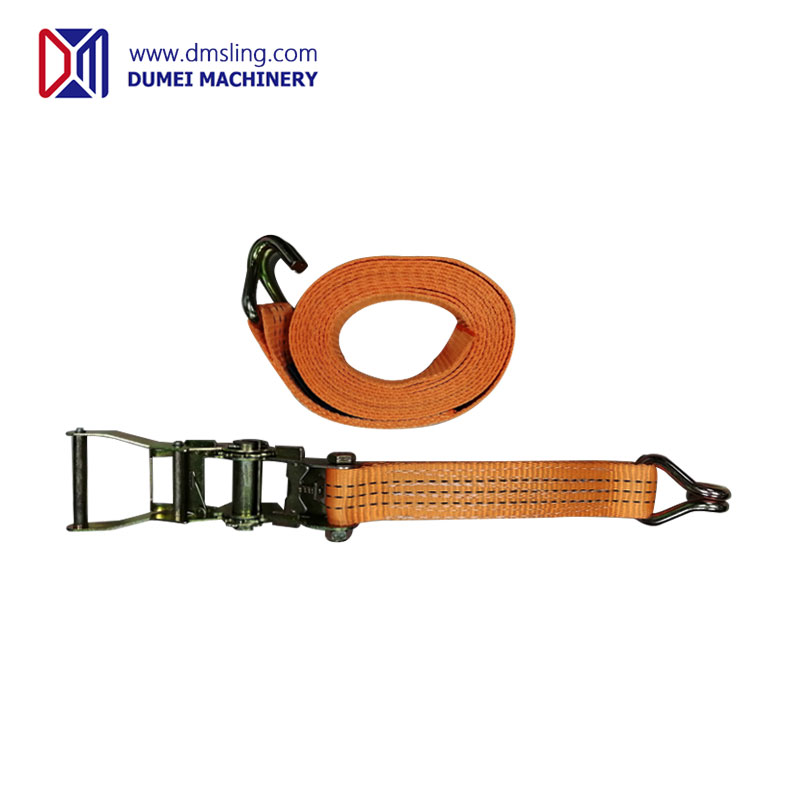

3000KG Ratchet Tie-down Strap
Product Overview:
3T ratchet tie down straps are also known as LC1500daN cargo ratchet lashing belts, which are used for securing truck loads, tying down loads while transporting, shifting, soring or moving them. As their names suggest, there is a tensioning device ( usually a ratchet) to restrain the load. They have replaced traditional jute ropes, chains and wires used for road/rail/air transportation, and for a variety of other applications securing truck loads. The use of ratchet tie-down strap can reduce the chance of load damage and also protect other traffic party.
3000KG Ratchet Tie-down Strap Details
3000KG ratchet tie-down straps are available in a large variety of configurations of different ratchets and end fittings of various capacities.
The main advantages are:
Effective and safe control of loads during transportation
Extremely quick and efficient tie down and release the load thus saving time
No damage to the load being tied down.
Low elongation, wear-resistance,softness and flexiblility
Model: DMRTD-DJH030T
Type: Ratchet with double J hooks
Webbing Material: 100% High tenacity polyester
Hardware Material: Zinc plated metal
Construction: (LGF) One part is a short webbing strap stitched with a ratchet and a hook; (LGL) the other part is a long webbing strap with a hook
stitched in the end
Vertical Lashing Capacity: 1500daN (1500KG)
Circular Lashing Capacity: 3000daN (3000KG)
Safety Factor: 2:1
Breaking Strength: 3000KG
Width: 38mm
Fixed Length(LGF): 0.5M
Loose End Length(LGL): 2.5M,3.5M,4.5M,5.5M, and customized length
Total Length: 3M,4M,5M,6M, and customized length
Colour: Orange, blue, yellow and customized colour
Working Temperature: -40°C~100°C
Manufacturing Standard: EN12195-2
Certification: GS issued by TÜV
Warning: Not for lifting
