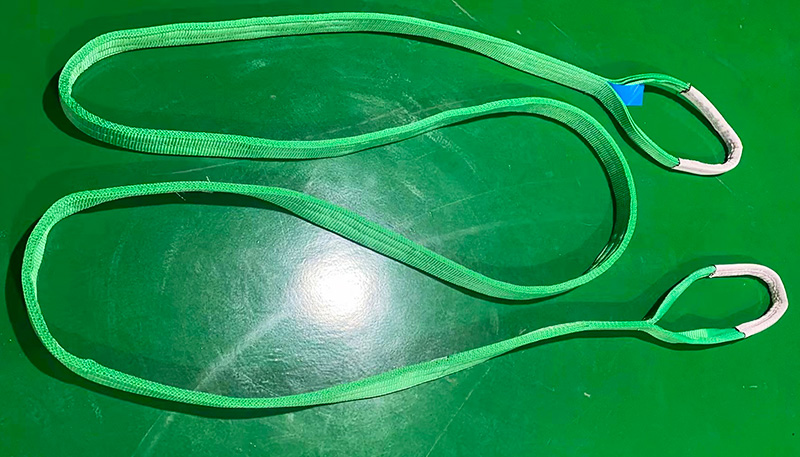

2 Ton Flat Webbing Sling with Eyes

Eye to eye sling, or eye and eye flat webbing sling, is one of the most common types of lifting slings, featuring a double-layer or 2-ply structure also known as a duplex webbing sling. Compared to the single ply endless flat sling, the double-layer eye sling is more suitable for heavier objects that have their own lifting points. Each end of the sling has a reinforced eye or loop. The style of the loop can be flat, folded or twisted, which called as flat eye, folded eye, and twisted eye. Additionally, for this type of eye sling, we can also customize three-layer or four-layer constructions.

Web slings often employ a color-coded capacity range, making it easier for users to select the appropriate sling for their lifting needs.

The flat webbing sling with a safe working load of 2 tons is typically produced with a safety factor 7:1. It has a width of 60mm and a double-layer structure, with two reinforced ring eyes at each end for use in combination with other rigging equipment. The colour is usually dyed green, and the surface of the webbing may be printed with a label indicating a working load limit of 2000 kilograms (WLL 2000KG).



Model: DMFS7EE-2T

Type: Folded Eyes

Material: 100% High tenacity polyester

Construction:  Woven into a flat webbing and double layers  with reinforced eyes in both ends

Safety Factor: 7:1

Working Load Limit: 2 Ton (2000KG)

Breaking Strength: 14 Ton

Width: 60mm

Approx Thickness: 7.5mm

Length: 1-50M

Eye Length: 300mm

Colour: Green

Working Temperature: -40°C~100°C

Manufacturing Standard: EN1492-1/A1

Certification: CE & GS issued by TÜV



Of course, we also manufacture polyester double-layer flat lifting slings with WLL of 1 ton, 3 tons, 4 tons, 5 tons, 6 tons, 8 tons, 10 tons, 20 tons, 30 tons, and 50 tons according to European standard EN1492-1. Besides, the endless round slings with WLL range from 1 ton to 1000 tons are available in production.
